Insertion Loss vs Return Loss in Fiber Optics: Definitions, Formulas, Standards, and Causes

Introduction

In fiber optic networks, signal strength and quality are affected by how efficiently light travels through the system. Two critical performance metrics are:

Insertion Loss (IL) – measures how much signal power is lost when light passes through a component.

Return Loss (RL) – measures how much signal is reflected back toward the source due to discontinuities.

Understanding both IL and RL is essential for designing reliable networks, especially in high-density environments like data centers.

What Is Insertion Loss?

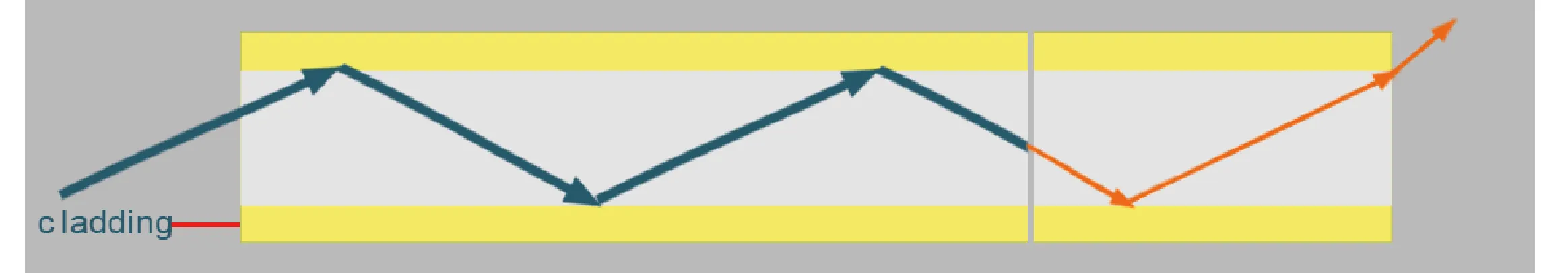

Insertion Loss (IL) is the amount of optical power lost as the signal travels from one point to another in a fiber optic link, usually across connectors or splices. It is expressed in decibels (dB) and represents the forward power loss due to attenuation and connection inefficiencies.

Formula for Insertion Loss:

$$\text{IL (dB)} = -10 \times \log_{10} \left( \frac{P_{out}}{P_{in}} \right)$$

• Pin: Optical input power

• Pout: Optical output power

A lower IL value means better performance. For example, 0.3 dB is better than 0.5 dB.

General Guidelines:

• TIA/EIA 568B.3 standard: This standard suggests that the maximum insertion loss in single-mode and multi-mode fiber links should remain within 0.75 dB for both SC and LC connectors.

What Is Return Loss?

Return Loss (RL) is a measure of how much light is reflected back toward the source due to discontinuities or impedance mismatches, such as dirty connectors or poor mating.

Formula for Return Loss:

$$\text{RL (dB)}=-10\times {\log }_{10}\left(\frac{P_{reflected}}{P_{in}}\right)$$

• Preflected: Light reflected at the interface

• Pin: Light initially launched into the fiber

Unlike IL, a higher RL value is better because it indicates lower back-reflection. For instance, 60 dB is better than 30 dB.

Insertion Loss vs Return Loss: Key Differences

Common Causes of IL and RL

1. Connector Endface Quality & Cleanliness

• Scratches, pits, cracks, or contamination (dust/oil) on the fiber endface can significantly degrade performance.

• Even microscopic particles can block light from passing through properly.

2. Broken or Poorly Mated Fibers

• A cracked fiber or mismatched connector (e.g., APC vs PC) may allow some light to pass but will cause major insertion loss and return loss.

• APC connectors are polished at an 8° angle to minimize reflection—mating with PC connectors (flat) leads to poor alignment and reflection spikes.

3. Exceeding Minimum Bend Radius

• Excessive bending of fibers can cause microbending and macrobending, increasing insertion loss and potentially damaging the cable.

• General rule: The static bending radius of the optical cable is 10 times the outer diameter of the optical cable, and the dynamic bending radius is 20 times the outer diameter of the optical cable. (e.g., 20 mm for a 2 mm patch cord).

Bend radius of several common optical fibers：

How to Test IL and RL in Fiber Optics

Insertion Loss Testing

Standard: IEC 61300-3-4
Tools: Light source, power meter, launch and receive cords

Steps:

1. Reference the power without the DUT (Device Under Test).
2. Insert the DUT.
3. Measure power loss.
4. Apply the IL formula.

Return Loss Testing

Standard: IEC 61300-3-6
Tools: Return loss meter or OTDR

Steps:

1. Inject light into the DUT.
2. Measure the reflected power.
3. Use the RL formula.

Using OTDR (Optical Time Domain Reflectometer)

Conclusion

Both insertion loss and return loss are critical for evaluating and maintaining fiber optic network performance.

• IL affects how much signal is lost during transmission.

• RL affects how much signal reflects back, potentially disrupting communication.

By understanding their formulas, standards, and causes, technicians and engineers can optimize network design, ensure compliance with industry benchmarks, and maintain system reliability.
