When upgrading network infrastructure to support 10 Gigabit Ethernet (10GBASE-T), many IT professionals naturally look toward Category 7 (Cat7) cabling. However, there is a widespread misunderstanding in the telecommunications industry regarding the connectors used for Cat7.
Most people assume that standard RJ45 connectors are universally used across all Ethernet cables. In reality, to achieve strict ISO/IEC 11801 Class F (Cat7) performance, the official standard introduces a completely different interface: the GG45 (GigaGate 45).
To help network engineers and buyers make informed decisions, this technical guide explores the GG45 vs RJ45 comparison, analyzing the physical designs, transmission speeds, and the critical crosstalk data that forced the industry to evolve.
1. The 600 MHz Problem: Why Standard RJ45 Fails at Cat7
To understand why a new connector was invented, we must look at the limitations of the traditional RJ45 (8P8C) interface.
Cat7 cable is designed to support a massive bandwidth of 600 MHz (compared to Cat6a’s 500 MHz) to guarantee flawless 10 Gbps transmission over 100 meters. At these extreme high frequencies, a phenomenon known as Near-End Crosstalk (NEXT) becomes the primary enemy of data integrity.
NEXT occurs when the electromagnetic signal from one pair of wires interferes with an adjacent pair.
-
The RJ45 Flaw: In a standard RJ45 connector, the 8 internal metal pins are packed tightly together in a single row. Furthermore, the standard wiring schemes (T568A/B) force Pair 1 (pins 4/5) to sit directly between Pair 3 (pins 3/6).
-
The Data Reality: At frequencies approaching 600 MHz, the physical proximity of these parallel pins creates insurmountable NEXT. No matter how heavily shielded the Cat7 cable is, the signal degrades the moment it enters a standard RJ45 plug.
2. Enter the GG45: The Official Cat7 Standard (IEC 60603-7-7)
To solve the crosstalk bottleneck, the GG45 connector was developed and standardized under IEC 60603-7-7. It was specifically engineered to support the 600 MHz requirements of Cat7 and the 1000 MHz requirements of Cat7a.

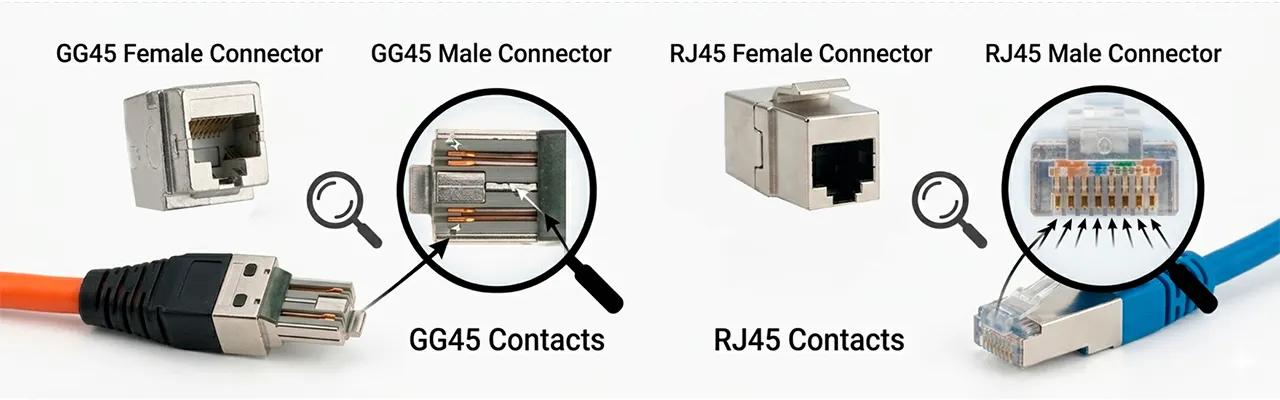

The 12-Contact Design
While an RJ45 connector has 8 contacts, a GG45 connector features 12 contacts. Instead of forcing all wires into a single horizontal row, the GG45 design physically separates the problematic wire pairs. It places 8 standard pins in the middle, and adds 4 additional pins in the far corners (top and bottom).
When transmitting Cat7 frequencies, the GG45 connector completely abandons the center pins that cause interference. Instead, it routes the data through the isolated corner pins. This drastic physical separation virtually eliminates Near-End Crosstalk, ensuring pristine signal quality at 600 MHz and beyond.
3. The Brilliance of Backward Compatibility
You might wonder: If I install GG45 jacks in my server room, will my older Cat6 cables still plug in?
Yes. The most brilliant engineering feature of the GG45 connector is its mechanical backward compatibility with RJ45.
-
Plugging in an RJ45: When a standard Cat5e or Cat6 RJ45 plug is inserted into a GG45 wall jack, the jack recognizes it. It uses the 8 standard center pins, functioning exactly like a normal RJ45 port.
-
Plugging in a GG45: When a true Cat7 GG45 plug is inserted, a mechanical switch inside the jack is activated by a small protrusion on the plug. This switch deactivates the inner pins and activates the specialized outer corner pins to unlock the 600 MHz performance.
4. GG45 vs RJ45: Technical Data Comparison
To quickly summarize the physical and electrical differences, refer to this data table:
| Specification | Standard RJ45 (Cat6a) | GG45 (Cat7 / Class F) |
| Max Bandwidth | 500 MHz | 600 MHz (Up to 1000 MHz for Cat7a) |
| Data Rate | 10 Gbps | 10 Gbps (with higher headroom) |
| Number of Contacts | 8 | 12 (Uses 8 simultaneously) |
| NEXT Performance | High interference at >500 MHz | Excellent isolation at >600 MHz |
| Connector Standard | IEC 60603-7-4 / 7-51 | IEC 60603-7-7 |
Conclusion: Securing Your Network Infrastructure
Understanding the GG45 vs RJ45 distinction is vital for anyone investing in true Category 7 infrastructure. While the market is flooded with standard RJ45 connectors falsely advertised as “Cat7”, achieving genuine Class F performance requires the specialized pin separation that only the GG45 (or TERA) standards can provide.
At Gcabling, we supply telecommunications infrastructure engineered for absolute precision. Whether you are building a legacy Cat6a network with premium RJ45 keystone jacks or exploring next-generation high-bandwidth shielded cabling, our products are rigorously tested to meet and exceed international ISO/IEC standards.
Frequently Asked Questions
Q: Can I use an RJ45 connector on a Cat7 cable?
A: Technically, you can terminate a Cat7 cable with a shielded RJ45 connector, and it will physically work. However, doing so creates a “bottleneck.” Because of the NEXT (crosstalk) limitations of the RJ45 pin layout, the entire link will be downgraded to Cat6a performance (500 MHz). To achieve true Cat7 600 MHz performance, a GG45 or TERA connector is required.
Q: What does GG45 stand for?
A: GG45 stands for “GigaGate 45.” It was originally developed by Nexans and later adopted as the official IEC 60603-7-7 international standard for Category 7 / Class F network connectors.
Q: Does Cat8 use GG45 or RJ45?
A: Interestingly, Category 8 (Cat8.1) reverted back to the traditional RJ45 footprint. Advancements in internal PCB design and highly sophisticated noise-canceling transceivers inside network switches allowed engineers to push 2000 MHz through an RJ45 interface for very short distances (up to 30 meters) in data centers, bypassing the need for the GG45 interface in newer standards.
