Communication Cable brand
Gcabling is a premium enterprise-level network cabling brand specializing in ‘last 1KM’ network deployments. Built on over 20 years of industry presence, we provide a comprehensive portfolio of ethernet cables, network patch cords, fiber optic cables and fiber patch cords. To ensure seamless project execution, our dedicated engineering team—bringing 15+ years of field expertise—provides expert technical consulting to help clients navigate complex specifications and resolve deployment challenges. All Gcabling solutions comply with rigorous أول, استخراج وتحويل وتحميل, م.م, ، و رو إتش إس standards, and are backed by a standard ضمان 25 سنة to guarantee long-term network reliability and optimize TCO.
كابل إيثرنت
كيبل شبكة Cat7 Enternet Cable
كات 6 إيه Enternet Cable
كيبل كات 6 Enternet Cable
كات 6 إيه Enternet Cable

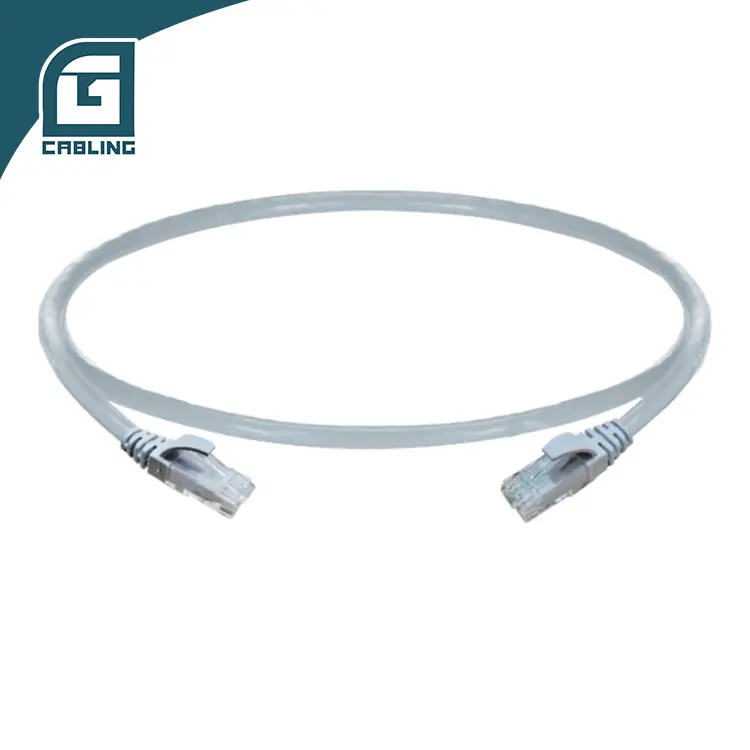

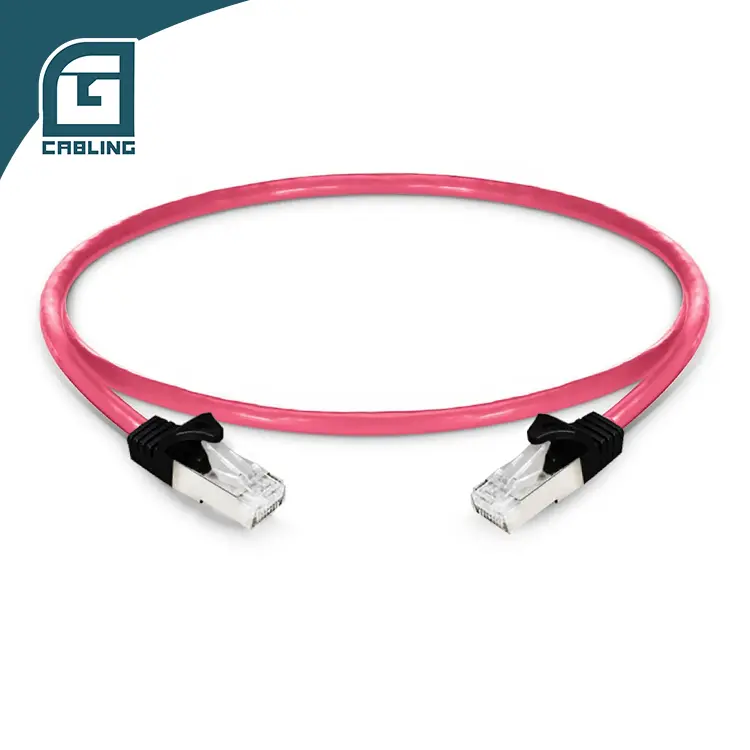

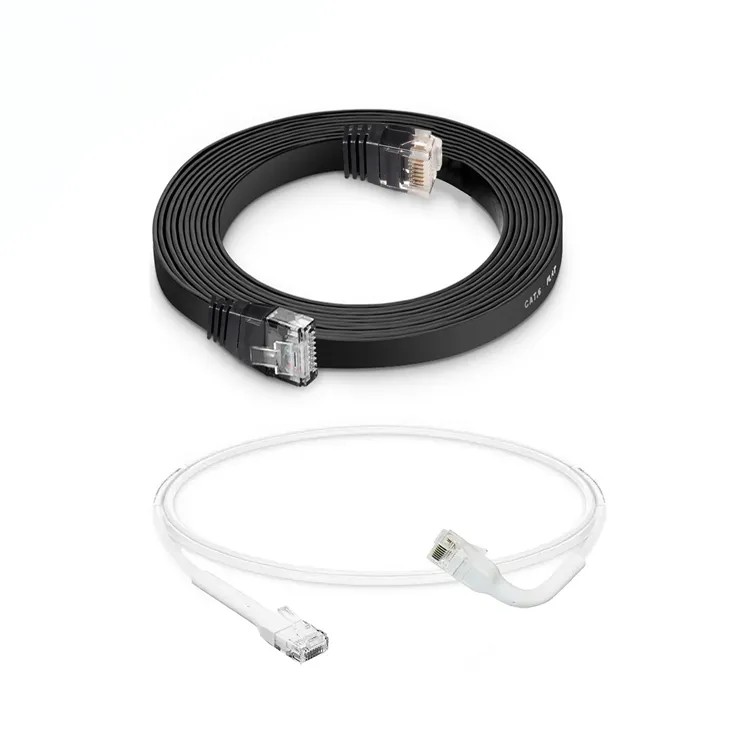

كابل شبكة مرقع

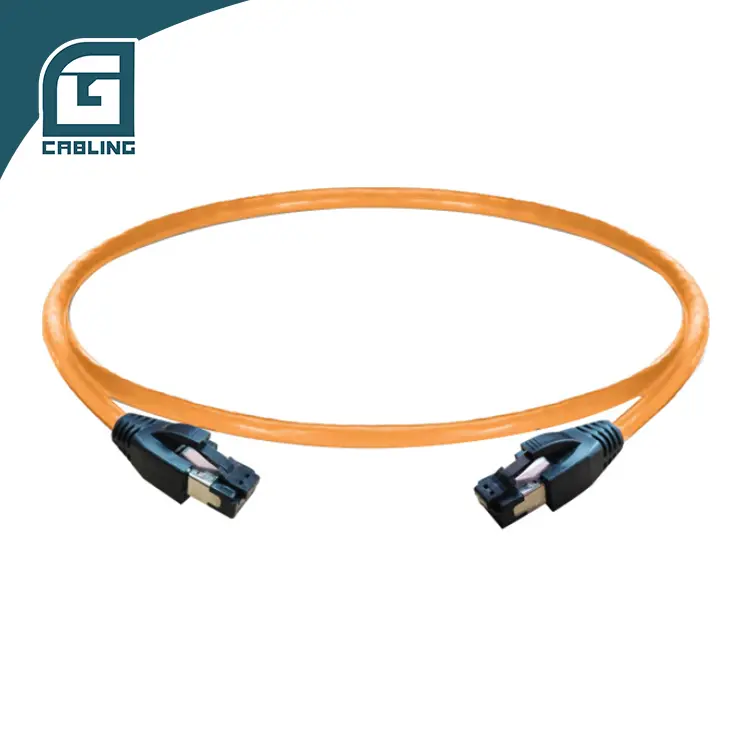

CAT8 سلك التصحيح

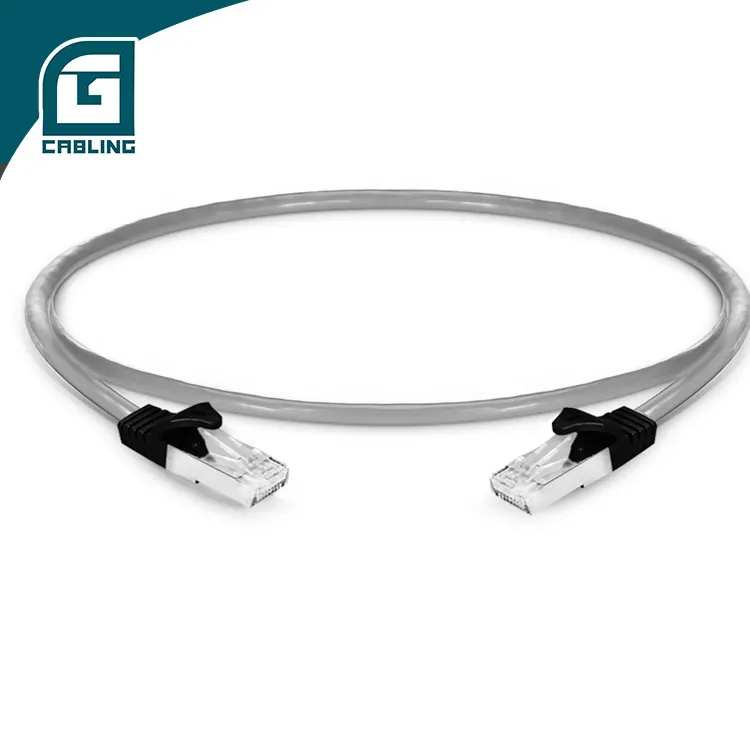

كيبل شبكة Cat7 سلك التصحيح
كات 6 إيه سلك التصحيح
استفسار عن المنتجات، رد خلال 24 ساعة!
- High-speed Ethernet networks cables
- High-performance Patch Cables
- Gcabling Cables vs Cables in the market
سي سي أي VS SOLID COPPER CABLES
| ميزة | سي سي أي | Solid Copper |
|---|---|---|
| Specification | Aluminum core coated with a thin layer of copper | 100% pure copper conductor |
| Oxidation Resistance | Easy to be oxidized tobe breakpoints | Strong antioxidant propertles |
| Tension | Poor ductility, cannot support strong tension | Good ductility,tensile strength |
| تطبيقات | Fast and gigabitethernet | Fast, Gigabit, 10-Gigabit Ethernet, PoE |
| Service Life | Without guarantee | 25 years warranty |
- RoHS and REACH compliant
- The pass rate typically exceeds 85% for CAT6A and CAT7 patch cords, and over 70% for CAT6 patch cords
- 100% pass rate can be guaranteed provided that the client covers the associated testing costs
- Performance meets ANSI/TIA-568C.2 and ISO/EC-11801 standards
- Unique injection molding design allows quick identification of Cat5, Cat6, and Cat6a cables for different applications.

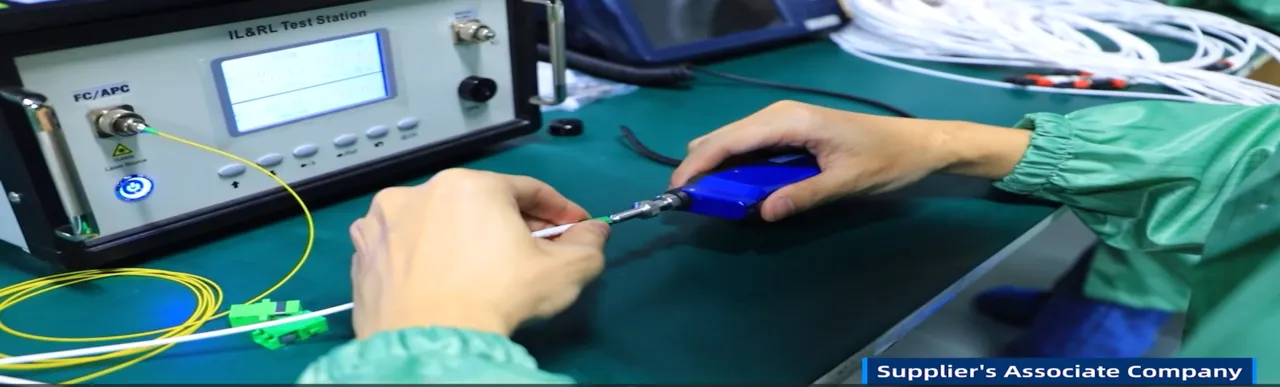

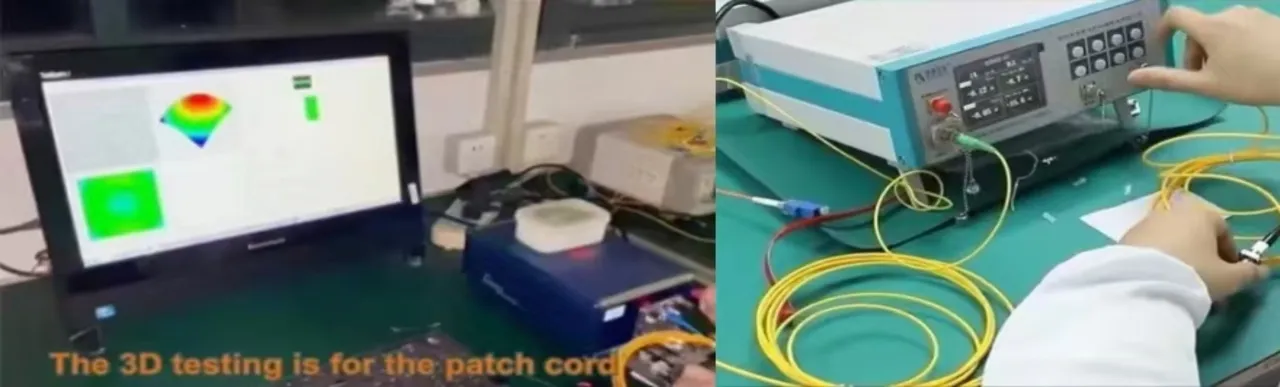

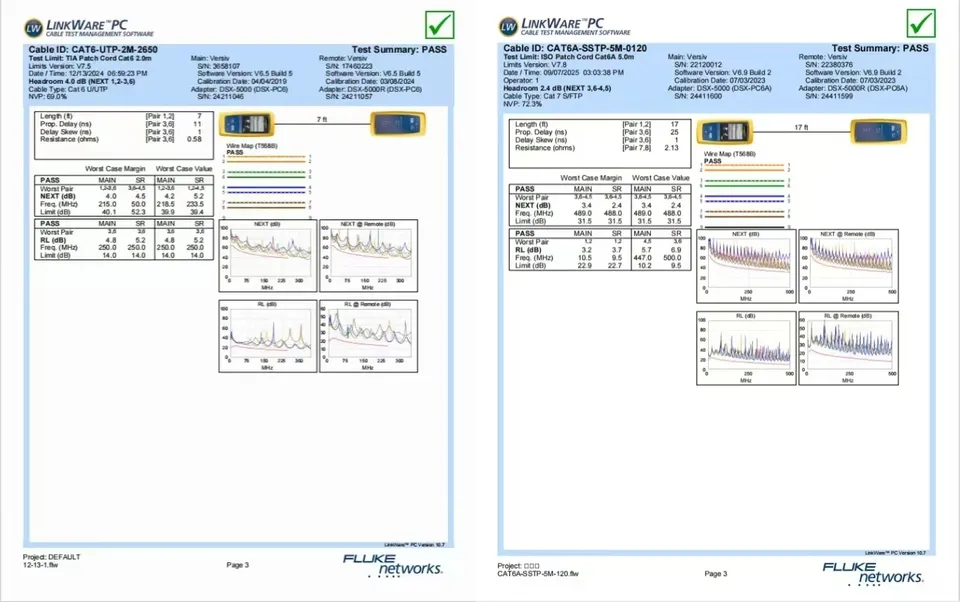

Patch Cord Test Also called a jumper cable test, this is an advanced test focused on network patch cords. lt verifies long-term usability high stability, and eliminates packet or data loss. Cables passing this test offer superior performance compared to standard channel-tested cables, making them ideal for high-demand environments like mid-to-large or branded data centers.

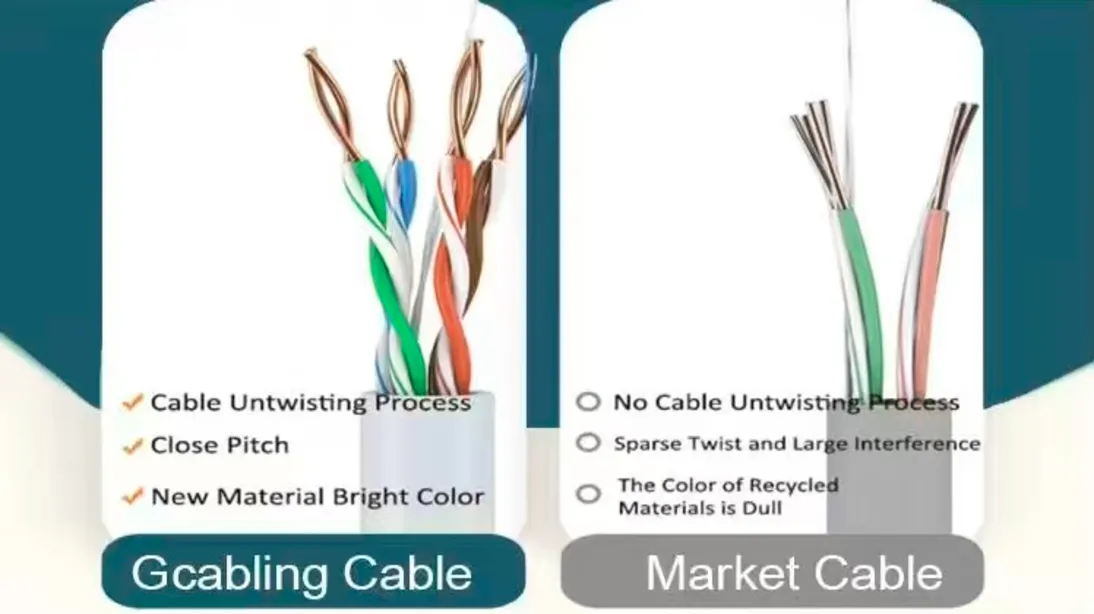

| ميزة | Gcabling Cables | Typical Market Cables |
|---|---|---|

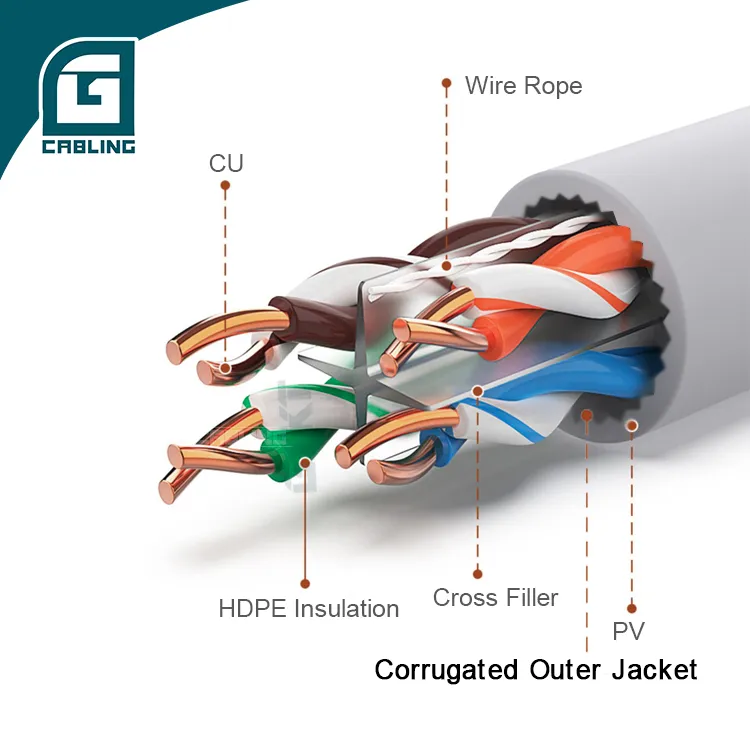

| سترة | High-quality PE insulation, PVC/LSZH outer sheath; strong elastic protection; safe for wall penetration | Standard PVC jacket; lower durability; limited safety compliance |
| Twisting | Professionally twisted pairs with precise torque control; better anti-interference and stable transmission | Ordinary twisting; weaker crosstalk suppression; reduced performance |
| Cable Pulling | Large 5cm outlet holes; smoother pulling without knots | Small 2.5cm outlet holes; easy to knot; |
| RJ45 Connectors | IEC 60603-7 verified; precision-controlled contact points; broad compatibility with routers, switches, TV boxes | Generic connectors; inconsistent contact; possible instability or mismatch |
| Performance | Stable Gigabit (1Gbps/1000Mbps) Ethernet link; high reliability for demanding environments | Performance may drop under high demand; |

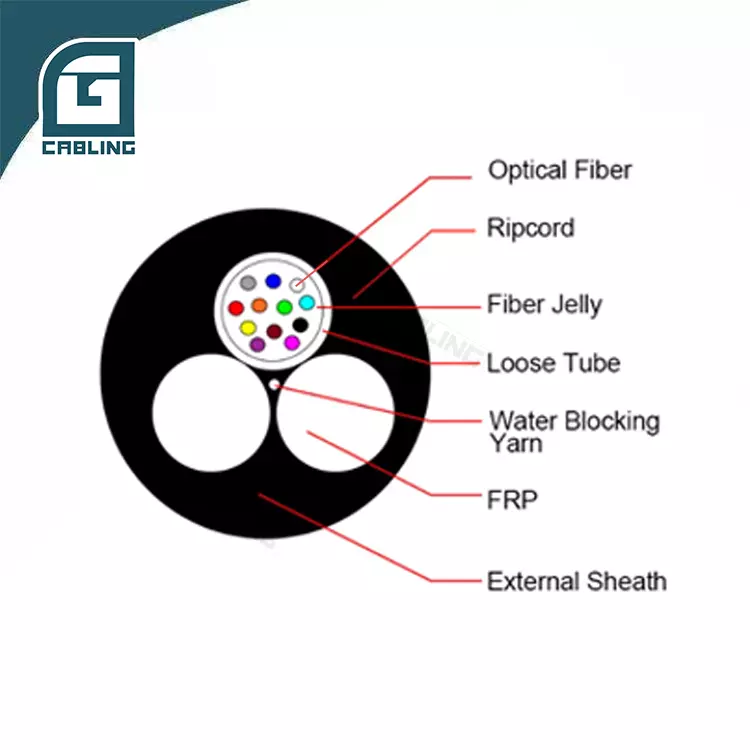

كابل الألياف البصرية

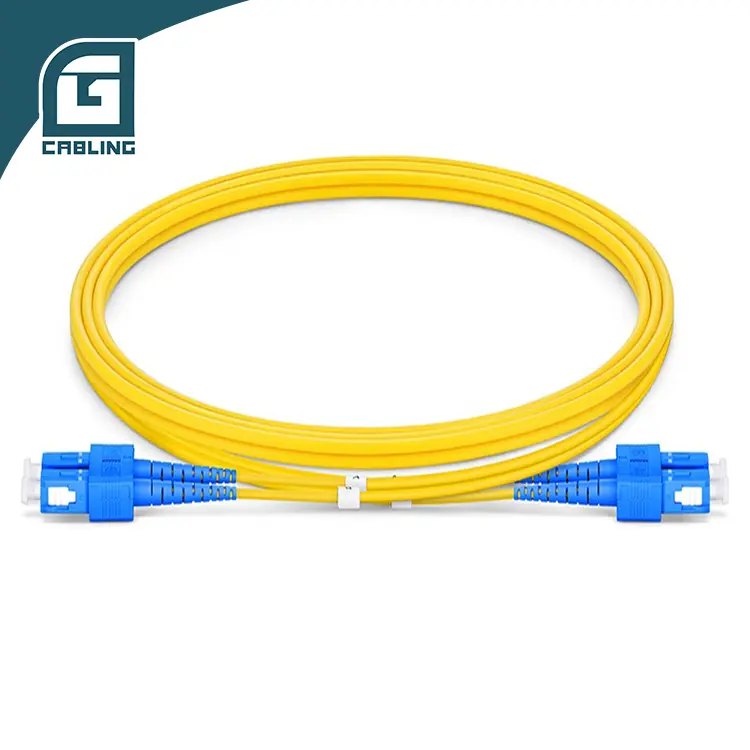

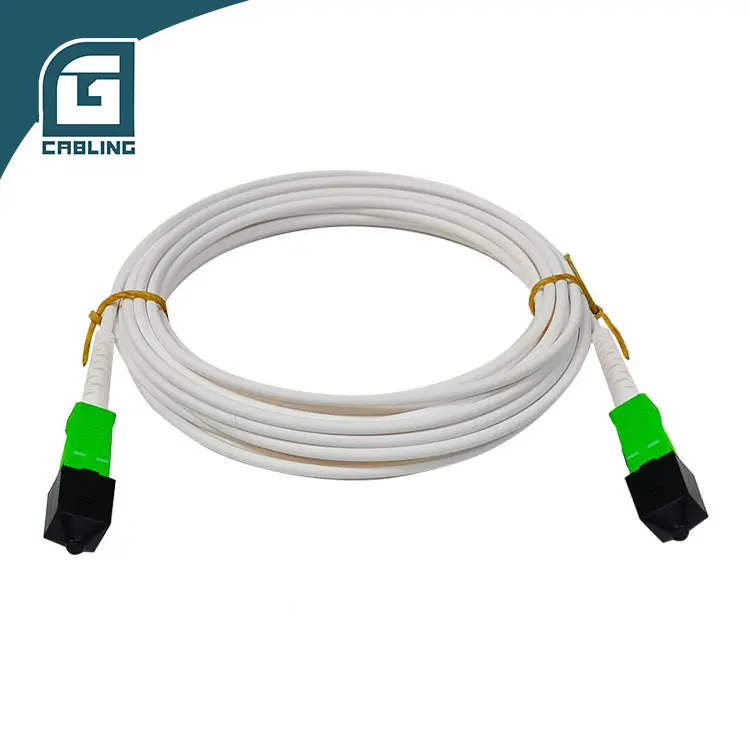

كابل توصيل ألياف بصرية
استفسار عن المنتجات، رد خلال 24 ساعة!
- High-Performance Fiber Optic Cables
- Standard Fiber Optic Patch Cables
- Gcabling Cables vs Cables in the market
| غرض | الوحدة | G.652D | G.657A1 | G.657A2 | G.657B3 |
|---|---|---|---|---|---|
| Attenuation Coefficient (1310nm) | dB/km | ≤٠٫٣٥ | ≤٠٫٣٥ | ≤٠٫٣٥ | ≤٠٫٣٥ |
| Attenuation Coefficient (1550nm) | dB/km | ≤0.21 | ≤0.21 | ≤0.21 | ≤0.21 |
| Macro-bend loss (100 turns, 60mm radius, 1550nm) | ديسيبل | ≤0.03 | ≤0.75 | ≤0.50 | ≤0.15 |
| Macro-bend loss (100 turns, 60mm radius, 1625nm) | ديسيبل | ≤0.05 | ≤1.5 | ≤١٫٠ | ≤0.45 |
| Proof stress level | كي بي إس آي | 100 | 100 | 100 | 100 |
| Effective group index of refraction (1310nm) | / | 1.4672 | 1.4672 | 1.4672 | 1.4672 |
| Effective group index of refraction (1550nm) | / | 1.4683 | 1.4683 | 1.4683 | 1.4683 |
| طول موجة الانحراف الصفري | م | 1300–1324 | 1300–1322 | 1300–1322 | 1300–1350 |
| انحدار التشتت الصفري | ps/(nm·km) | ≤0.091 | ≤0.091 | ≤0.091 | ≤0.091 |
| Zero dispersion slope (typical) | ps/(nm·km) | / | 0.086 | 0.086 | 0.086 |
| ميزة | Gcabling Fiber Optic Patch Cord |
|---|---|
| Fiber Core | Uses G657A1 fiber core, compatible with G652D G657A2. Supports bend-insensitive fiber with 10mm minimum bend radius. |
| Jacket material | Made of LSZH material, ensuring safety, environmental friendliness, and durability. |
| حلقة سيراميك | Insertion loss ≤0.3dB,typically ≤0.2dB ; Return loss ≥50dB (UPC) ≥60dB (APC). |
| Boot Strength | Special boot hook design enhances tensile strength. Max pulling force 30N, stronger than typical 10–15N market cables. |
| ميزة | Gcabling Cables | Typical Market Cables |
|---|---|---|
| Transmission Performance | High-speed & long-distance transmission based on G652D G657A2 single-mode fiber | Limited transmission range; lower stability |

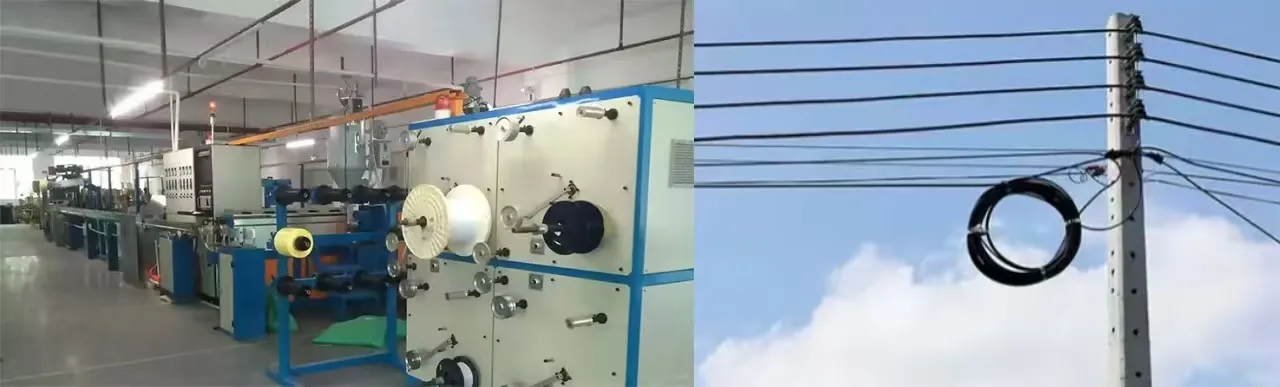

| Application Versatility | Supports outdoor network links, building-to-building, control centers, and surveillance; drop cables for FTTH | Often limited to single-use scenarios; poor adaptability for access networks |
| متانة | Strong resistance to pressure, tension, and bending; adapts to complex outdoor conditions | Lower mechanical strength; prone to damage during installation or use |
| Weather Protection | Waterproof, moisture-proof, and weather-resistant design for long-term stability | Limited protection; vulnerable to rain, humidity, or temperature changes |
| Reliability | Stable performance in demanding environments; suitable for long-term operation | May degrade faster; risk of interruptions in harsh conditions |

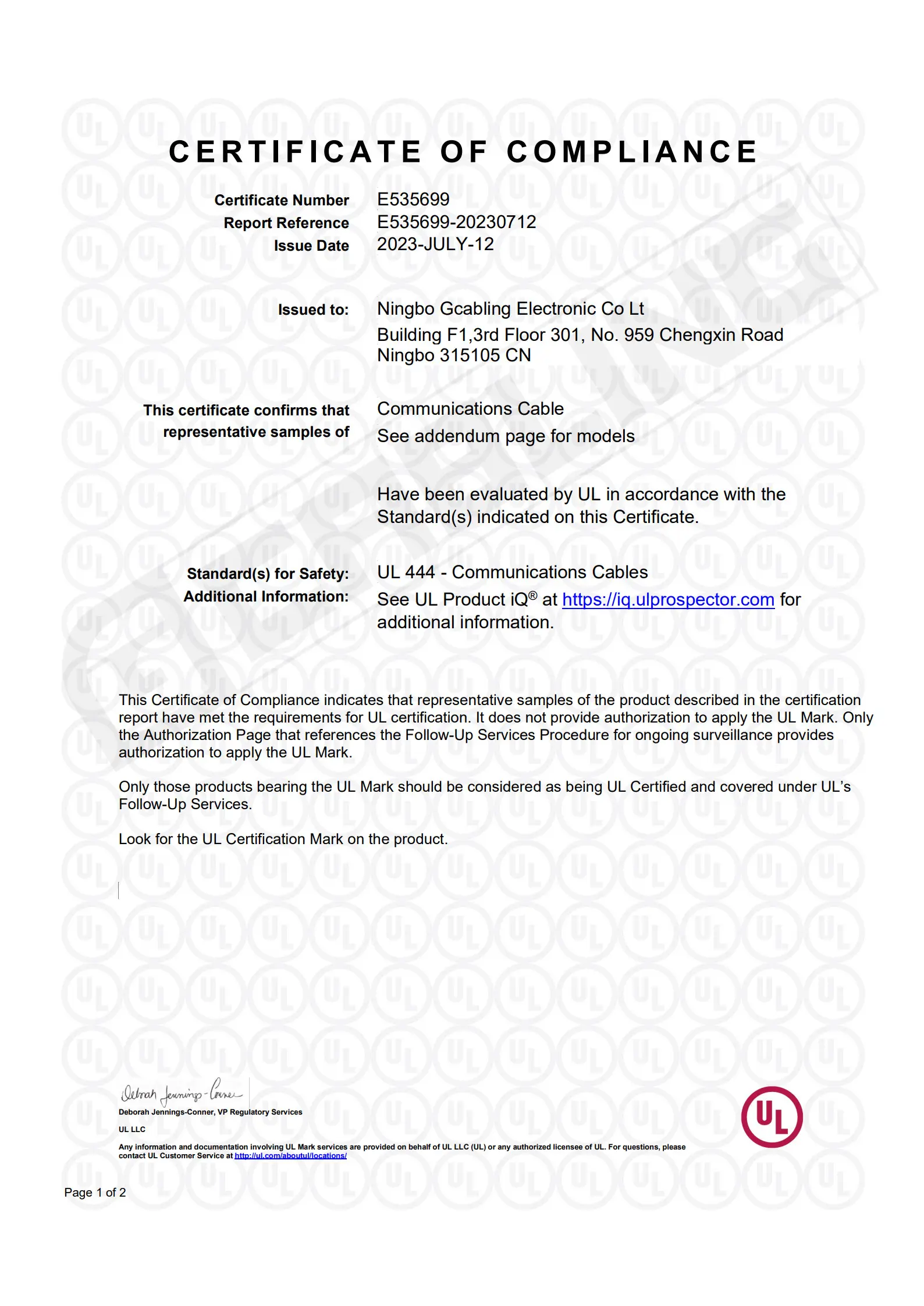

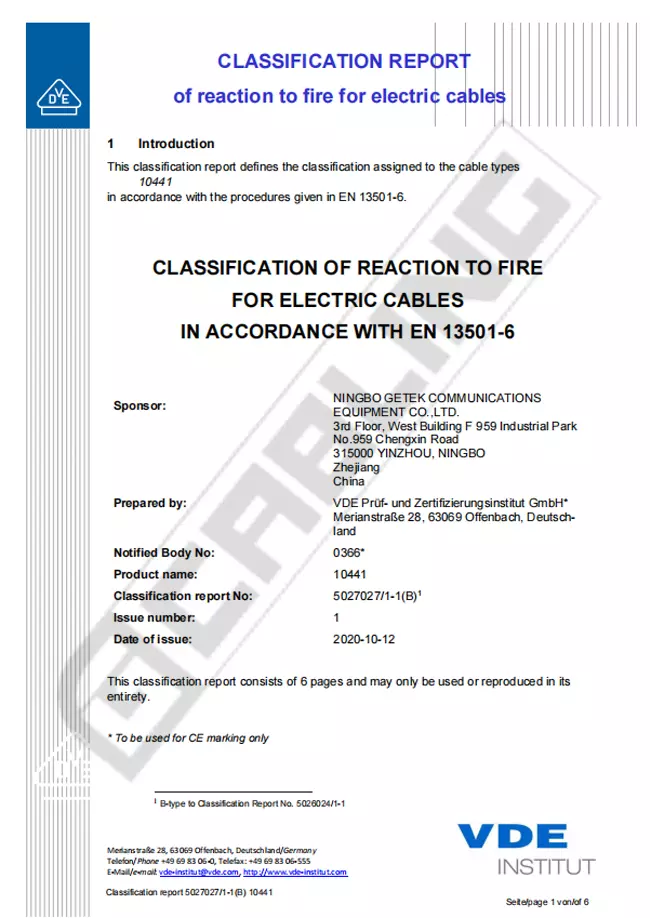

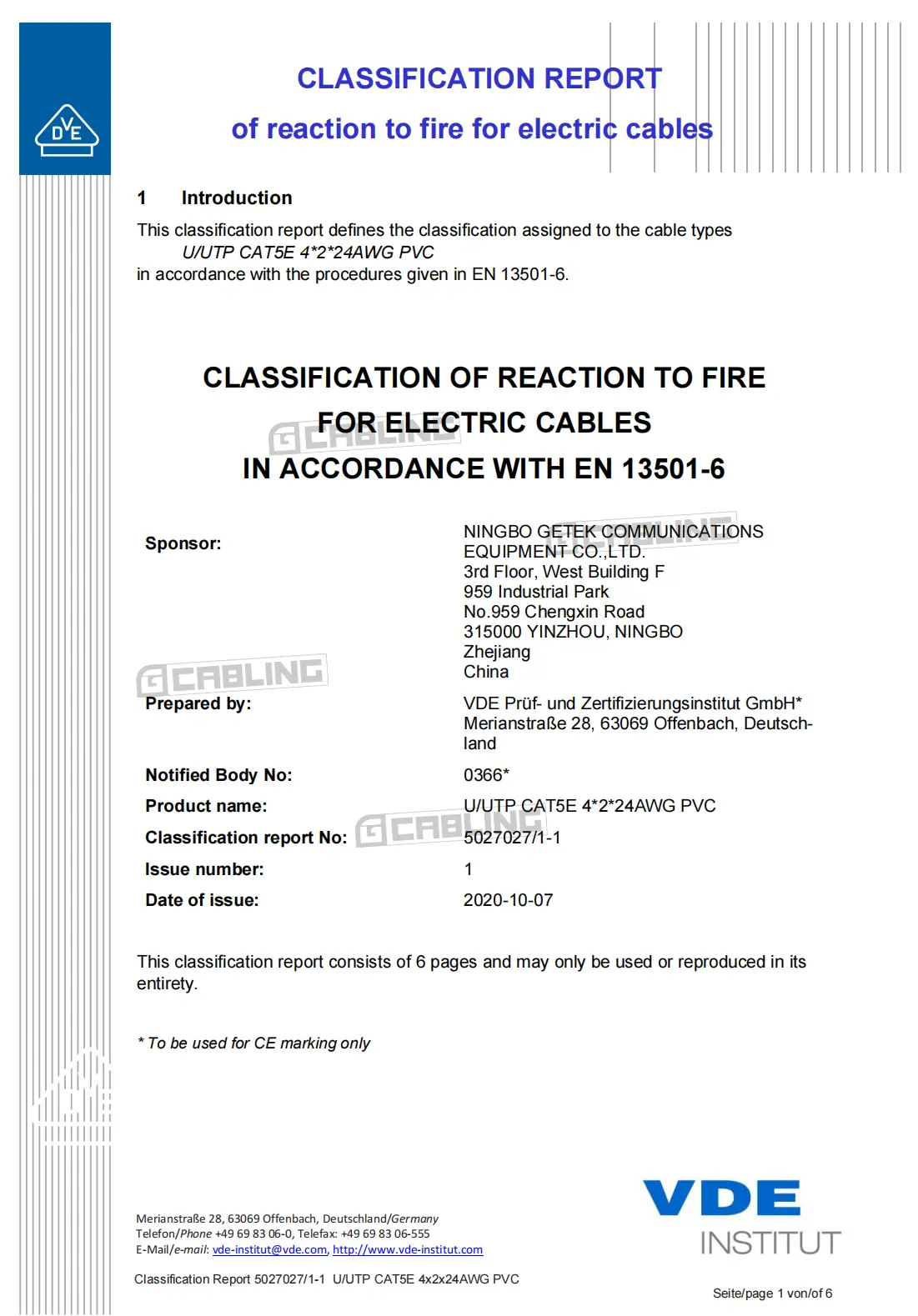

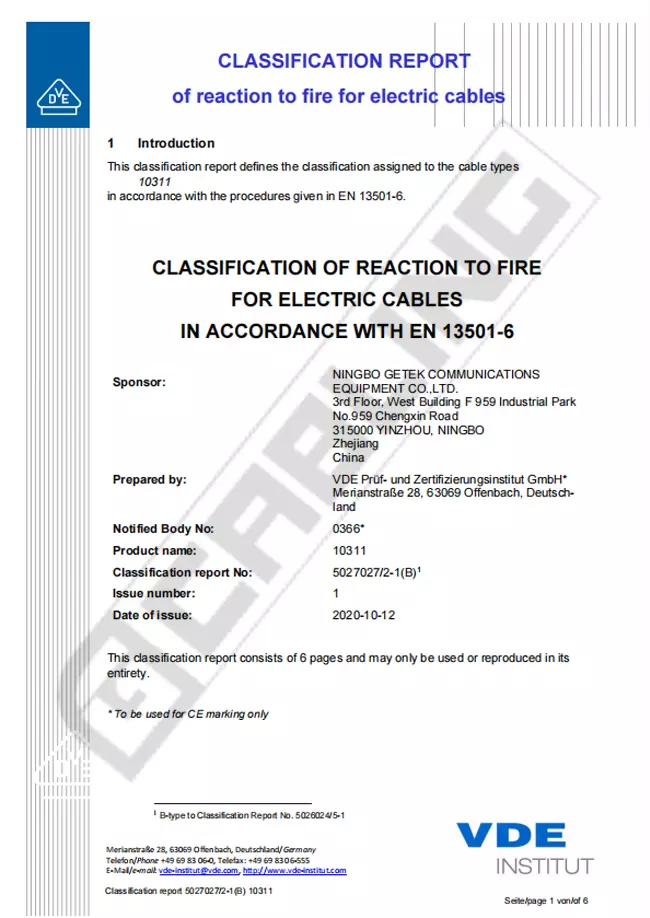

CERTIFICATION
الأسئلة الشائعة
Q1: How do Gcabling network cables prevent kinking and wall penetration damage during installation?
A: By combining highly durable outer jackets with a unique pull-box design. The jackets protect conductors during rough wall penetrations, while our custom packaging features a 5cm smooth outlet hole, eliminating knots and kinks for faster, snag-free installations.
Q2: Why are Gcabling Ethernet cables strictly recommended for last-mile network installations?
A: Because they are manufactured with 100% pure oxygen-free copper, strictly avoiding unstable Copper-Clad Aluminum (CCA). This premium material guarantees low signal loss, stable long-distance performance, and reliable 1Gbps transmission essential for last-mile infrastructure.

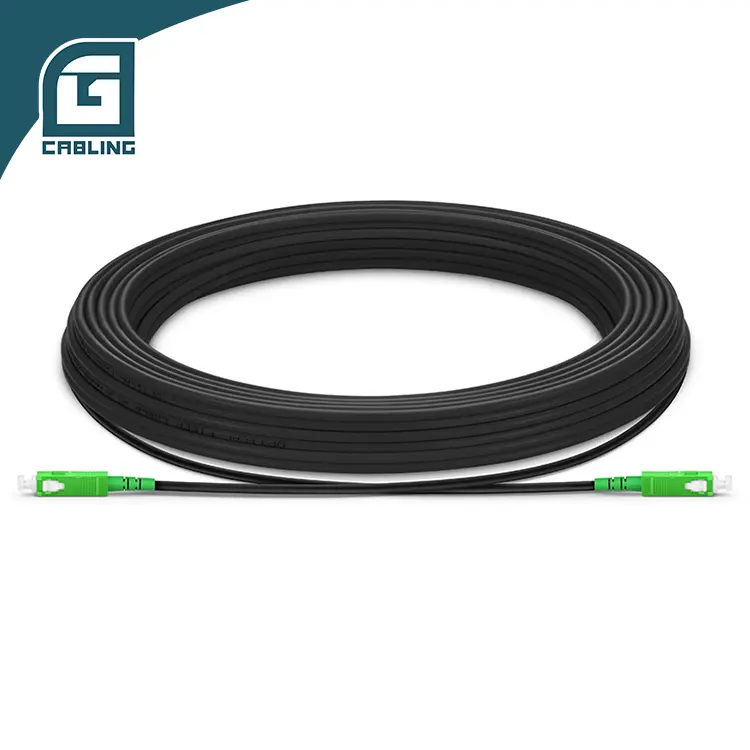

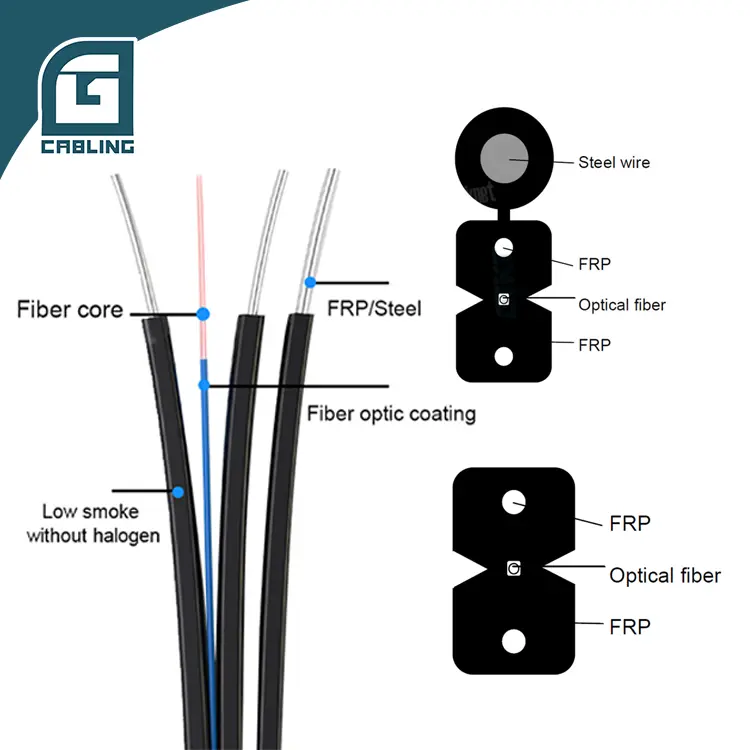

Q3: What is the waterproof rating of Gcabling outdoor drop patch cords?
A: They achieve up to an IP68 protection rating. Engineered for harsh environments, our 2610X (SC-SC) and 2622X (LC-LC armored) series utilize G657A1 single-mode fiber and LSZH jackets to provide absolute waterproof, dustproof, and corrosion-resistant performance.
Q4: Can Gcabling patch cords maintain Gigabit transmission in dense or complex network setups?
A: Yes. All cords strictly comply with ANSI/TIA-568-C.2 and ISO/IEC-11801 standards to prevent crosstalk in dense environments. Furthermore, they are RoHS and REACH certified, with optional 100% Fluke testing available to guarantee flawless performance.
