Gcabling ADSS Cable Aerial 48 Core Fiber Optical Cable
الوصف
| الشركة المصنعة / المورد |
كابلات Gcables |
رقم الموديل |
20301-029-3 |
| عدد الألياف |
48 Core |
درجة الألياف |
G652D |
| Span |
100m |
توتر (قصير الأجل) |
1500N |
| Jacket Material |
PE |
أو دي |
9.8mm±0.2mm |
| لون الكابل |
أسود |
حزمة |
3KM/wooden roll |

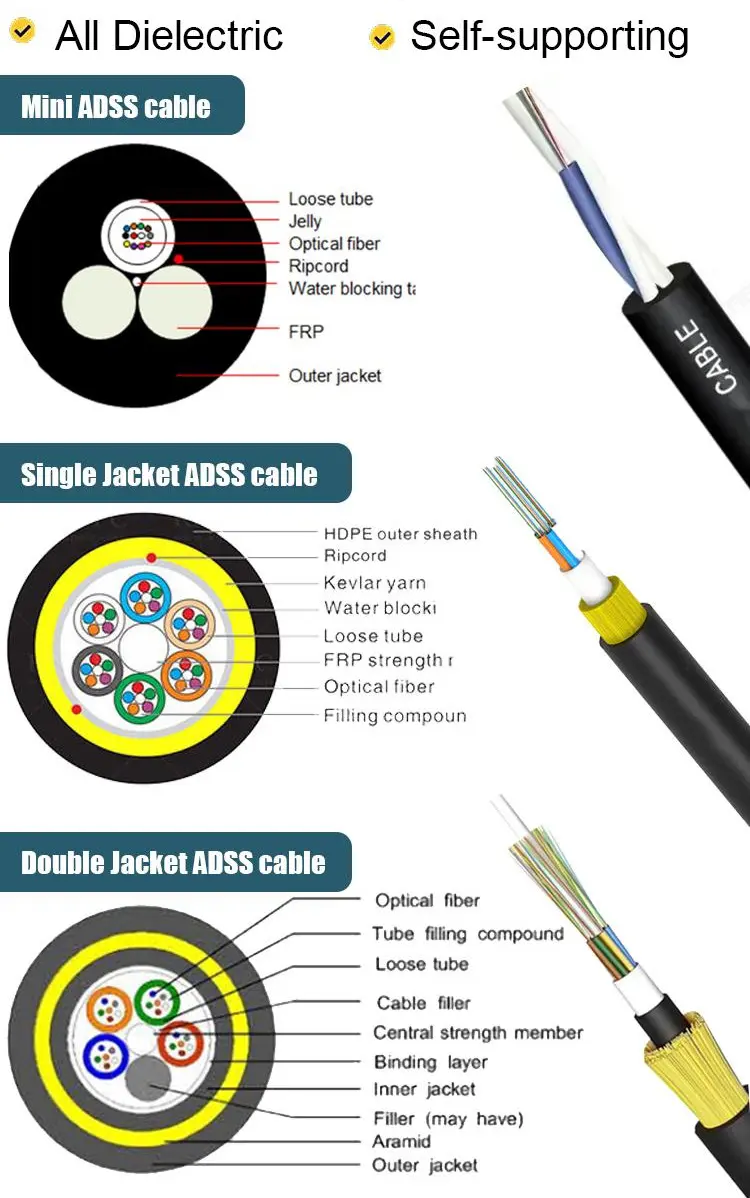

All Dielectric
Self-supporting

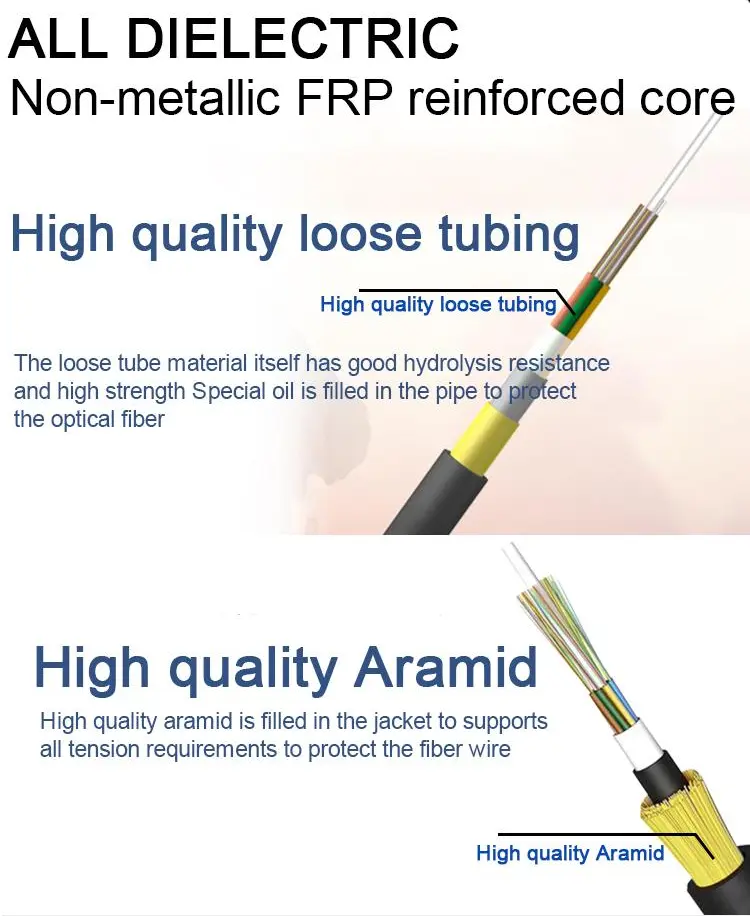

ALL DIELECTRIC
Non-metallic FRP reinforced core
High quality loose tubing
The loose tube material itself has good hydrolysis resistance and high strength special oil is filled in the pipe to protect the optical fiber
High quality Aramid
High quality aramid is filled in the jacket to support all tension requirements to protect the fiber wire

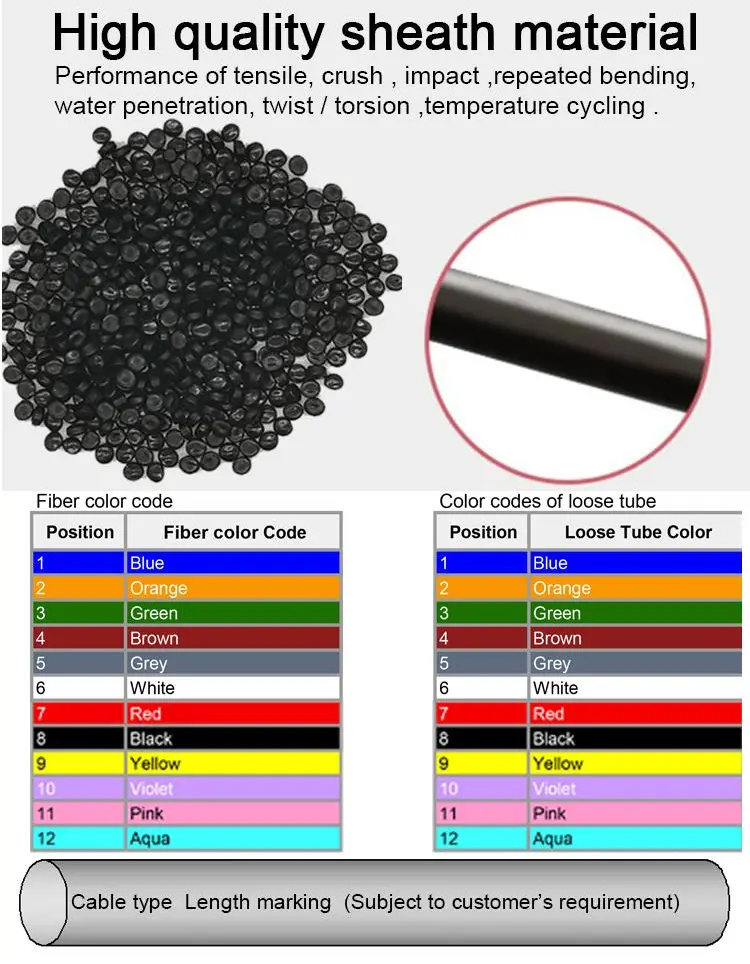

High quality sheath material
Performance of tensile, crush, impact, repeated bending, water penetration, twist / torsion, temperature cycling
