Gcabling® MPO/MTP series
High-Density MPO/MTP Cabling Solutions for Modern Data CentersFuture-proof your network for 100G, 400G, and 800G architectures. As a premium structured cabling brand, Cabos G delivers 100% 3D-tested MPO fiber assemblies and Ultra-High-Density (UHD) patch panels. Experience top-tier enterprise performance and plug-and-play efficiency without the inflated premium brand markup.
mpo patch cord

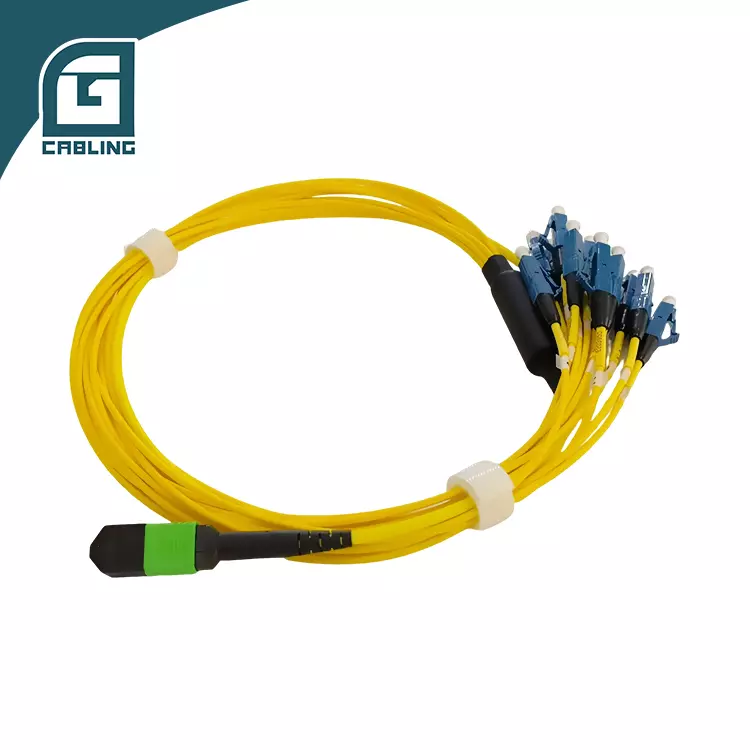

Cabo de fibra óptica MPO
Part No.：21885-Series
Length: 5M, 10M, 20M, 50M
Specification: MPO/UPC-MPO/UPC
fiber count: 12
Insertion Loss: ≤0.3dB
Return Loss: ≥20dB
Polarity: A
Fan-out MPO Patch Cord
Part No.：21285-Series
Length: 1M, 3M, 5M (fan-out: 0.4M)
Specification: LC/UPC-MPO/APC
fiber count: 12
Insertion Loss: MPO≤0.35dB, LC≤0.25dB
Return Loss: MPO≥45dB, LC≥55dB
Polarity: A
Fan-out MPO Patch Cord
Part No.：212850P5
Length: 0.5M
Specification: MPO-LC (APC/UPC)
fiber count: 12
Insertion Loss: MPO≤0.35dB, LC≤0.25dB
Return Loss: MPO≥45dB, LC≥55dB
Polarity: A
Engineered for Zero-Downtime Environments
Ultra-Low Insertion Loss
Standard and elite low-loss components available (IL ≤ 0.35dB), ensuring maximum optical power budget for high-speed transceivers.

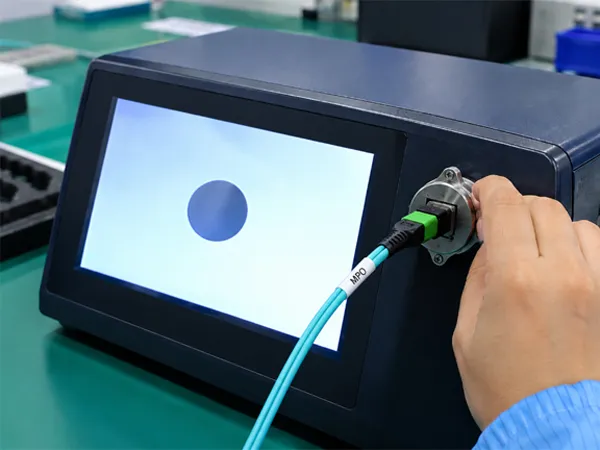

100% 3D Interferometry Tested
Every Gcabling MPO/MTP connector undergoes rigorous 3D geometry testing to guarantee flawless end-face physical contact and superior Return Loss (RL).

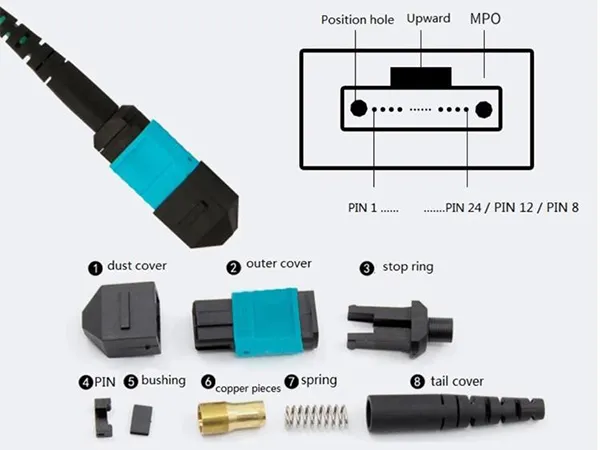

Premium Brand Components
Utilizing genuine US Conec MTP® and elite MPO connectors, paired with bend-insensitive fiber (OM3/OM4/OM5/OS2) for unmatched reliability.

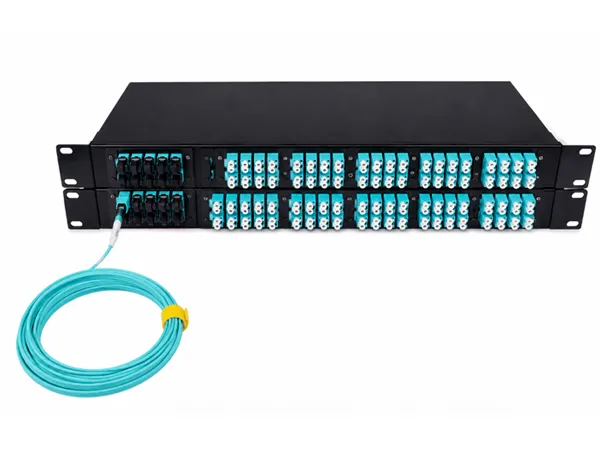

Plug-and-Play Architecture
Pre-terminated and modular designs slash field installation time by up to 75%, significantly reducing your project labor costs.
mpo fiber patch panel
MPO Rack Mount ODF
Size: 1U*19″
Specification: 12*12=144 núcleos para LC
Depth: 455 mm
Material: Placa de ferro de 1,2 mm
MTP/MPO ODF Rack
Size: 1U*19″
Specification: 8 interfaces MPO, 48 interfaces LC duplex
Depth: 200 mm
Material: Placa de ferro de 1,2 mm
MPO/MTP Cassette
Size: 9*15cm
Specification: MPO/MTP to 12xLC
Insertion Loss: MPO≤0.3dB, LC≤0.3dB
Return Loss: MPO≥20dB, LC≥35dB
Polarity: A
Gcabling modern data center cabinet
Heavy-Duty Server Cabinet
Smart Server Cabinet
Micro Data Center
Frequently Asked Questions About Data Center Cabling
Q: What is the difference between Base-8 and Base-12 MPO cabling?
A: Base-12 uses 12-fiber MPO connectors, commonly used for 10G to 40G migration. Base-8 uses 8-fiber MPO connectors, which is the most efficient and cost-effective architecture for modern 40G, 100G, and 400G transceivers (like QSFP-SR4), as it ensures 100% fiber utilization without dark fibers. Gcabling provides complete solutions for both.
Q: Can I integrate Gcabling MPO cassettes into my existing data center racks?
A: Yes. Gcabling’s high-density MPO cassettes and patch panels are designed for standard 19-inch server racks and network cabinets. They offer seamless interoperability with standard fiber infrastructures, providing a premium upgrade path at an exceptional value.
Q: How does Gcabling ensure the reliability of its pre-terminated MPO cables?

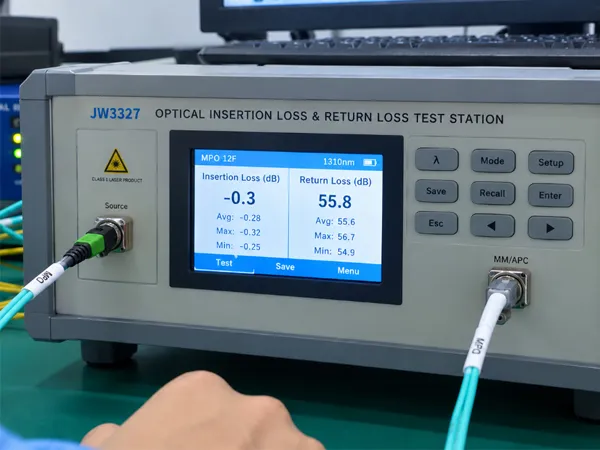

A: As a quality-driven brand, we leave nothing to chance. Every MPO/MTP cable assembly is manufactured in a dust-free cleanroom and undergoes 100% 3D interferometer testing for end-face geometry, alongside strict Insertion Loss (IL) and Return Loss (RL) optical testing before shipping.
Ready to Scale Your Data Center?
Partner with Gcabling to deploy robust, high-density fiber networks faster and more cost-effectively. Whether you are upgrading a single server room or building a hyperscale facility, our engineering team is here to support your project.
