الوصف
| Manufacturer / Supplier | كابلات Gcables | Model Number | 26101050-029-2 / 26101100-029-3 |
|---|---|---|---|
| Connector Type | SC | Polish Type | APC |
| Compatible | Compatible with HUAWEI waterproof adaptor | Reinforcement | 0.4mm steel wire*2 + 1.0mm Galvanized steel wire |
| Cable Length | 50m, 100m | Cable Diameter | 2.0*5.0mm |
| Fiber Count | Simplex | Fiber Grade | G657A1 |
| Insertion Loss | ≤0.3 dB | Return Loss | ≥60 dB |
| Min. Bend Radius(Fiber Cable) | 10mm(Static) 20mm(Dynamic) |
Feature | G657A1 fiber wire can be better compatibility with G652D and G657A2 , support to bend Insensitive Fiber & 10mm Min. Bend Radius |
| Cable Jacket | LSZH | Cable Color | Black |
| Wavelength | 1310/1550nm | Package | 1PC/Roll |

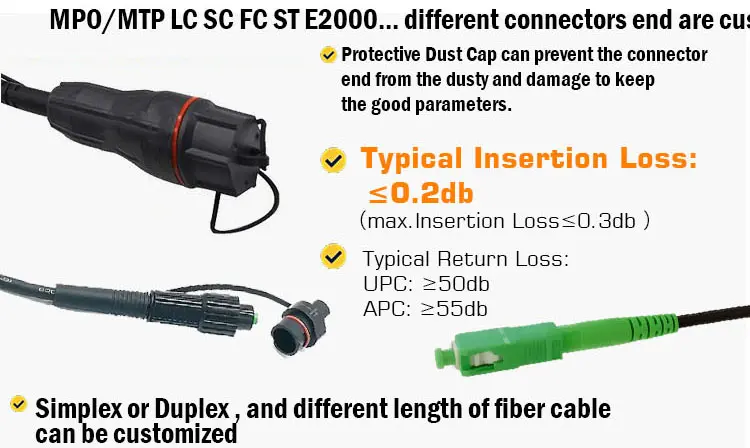

MPO/MTP LC SC FC ST E2000… different connectors end are customized
Protective Dust Cap can prevent the connector end from the dusty and damage to keep the good parameters.
Typical Insertion loss: ≤0.2db (max.Insertion Loss ≤0.3db)
Typical Return Loss: UPC: ≥50db APC: ≥55db
Simplex or Duplex , and different length of fiber cable can be customized
SPEC.OF FIBER CABLE
Making with CORING YOFC branded plastic optical fiber core to achieve outstanding performance stability.
Single-mode:
Requires very straight path
G657A1 / G657A2 / G652D
Light travels way: Light travels along a straight line without reflection.
Core size: a single module is 9.0 micron.
Multimode:
Multiple paths-sloppy
OM1 OM2 OM3 OM4 OM5
Light travels way: Fiber carry multi-channel optical signal transmission.
Core size: 50.0 or 62.5 micron
Superior Quality Material
LSZH plastic, shiny, tough, environmental protection
Non-toxic, fire retardant, core protection and low smoke
Durable,high temperature resistant
SPEC.OF FERRULE
High performance ferrule Fiber core
Ceramic ferrule
Strict examination to ensure no any crack
Furrule concentric rate: ≤1.0
SPEC. sOF FERRULE
Small and easy to installed with IP67 grade water dust proof and corrosion resistant
Cable diameter range: 2.0*3.0mm FTTH drop cable
