الوصف

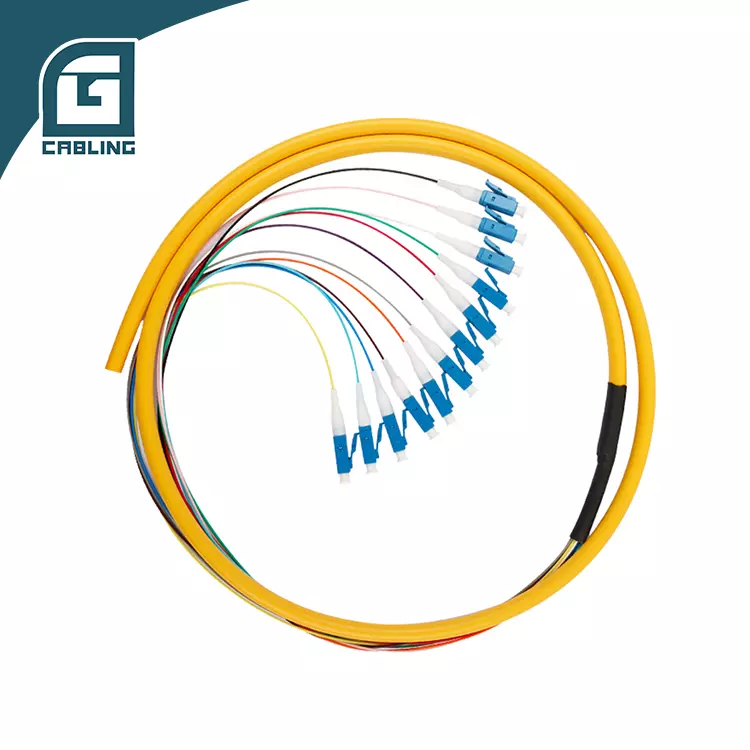

| Manufacturer / Supplier | كابلات Gcables | Model Number | 21205001-029-2 |
|---|---|---|---|
| Connector Type | LC | Polish Type | UPC |
| Cable Length | 1m | Fiber Count | 12 Core |
| Cable Diameter | 0.9mm(900um) | Fiber Mode | OS2 single mode(SM) 9/125um |
| Fiber Grade | G657A1 | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3 dB | Return Loss | ≥50 dB |
| Interchangeability | ≤0.3 dB | Vibration | ≤0.3 dB |

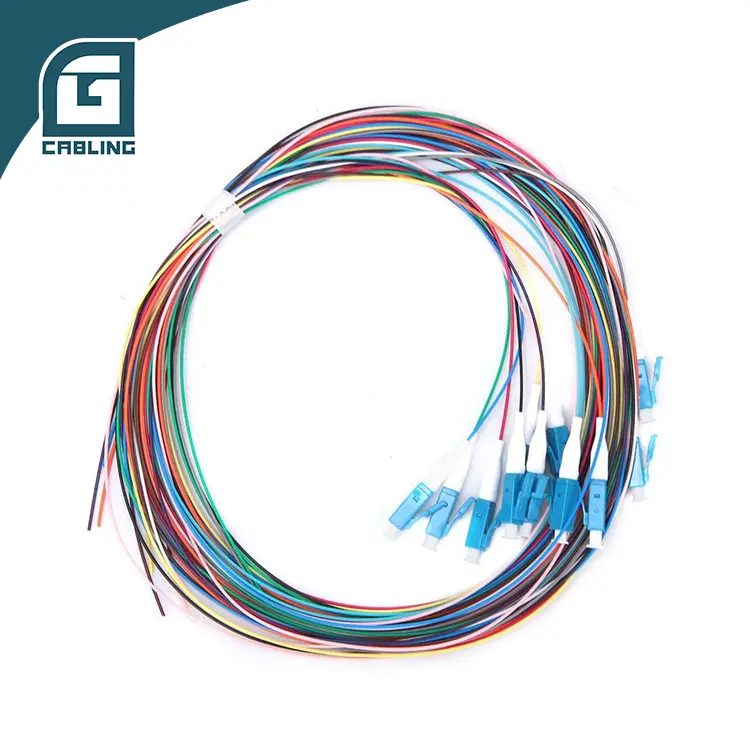

| Cable Jacket | LSZH | Cable Color | 12 colored |
| Minimum Bend Radius | 10mm(Static) 20mm(Dynamic) |
Feature | G657A1 fiber wire can be better compatibility with G652D and G657A2 , support to bend Insensitive Fiber & 10mm Min. Bend Radius |
| Standard | IEC61754, IEC 61300-3-35, GR-326-CORE | Package | 1set/Bag |

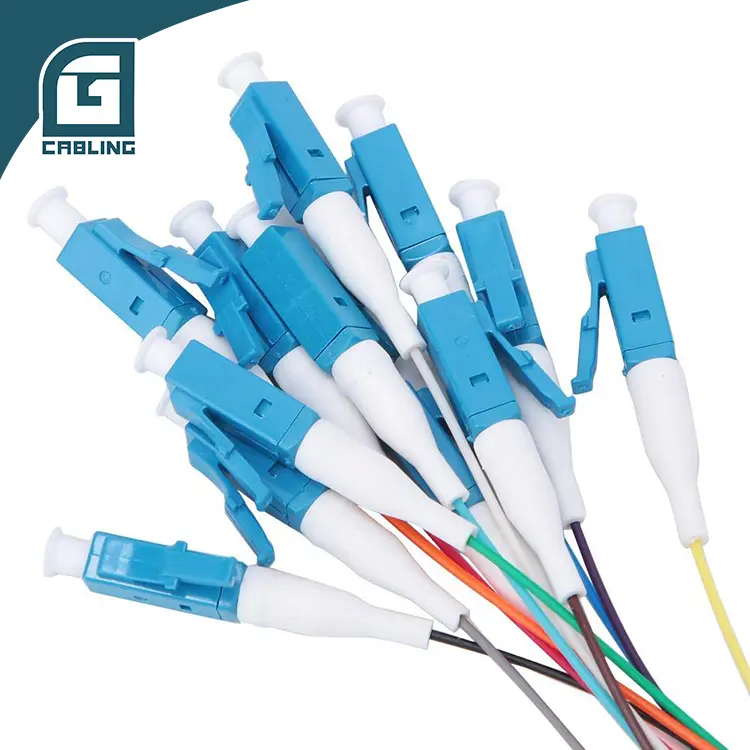

SC LC FC ST E2000 DIN…all type of end connector is available
High-precision Ceramic ferrule, low insertion loss, large return loss, strong stability and interchangeability.
Protective Dust Cap, prevent the fiber line and ensure the end of the plug will not damage the product parameters
Typical Insertion Loss: ≤0.2db (max.Insertion Loss ≤0.3db)
Typical Return Loss: UPC: >50db APC:>60db
Making with CORING YOFC branded plastic optical fiber core to achieve outstanding performance stability
Single-mode:
Requires very straight path
G657A1 / G657A2 / G652D
Light travels way: Light travels along a straight line without reflection.
Core size: a single module is 9.0 micron.
Multimode:
Multiple paths-sloppy
OM1 OM2 OM3 OM4 OM5
Light travels way: Fiber carry multi-channel optical signal transmission.
Core size: 50.0 or 62.5 micron
Superior Quality Material
LSZH plastic, shiny, tough, environmental protection
Non-toxic, fire retardant, core protection and low smoke
Durable, high temperature resistant
Easy to peel off
Especial design on 0.9mm jacket support to peel off the jacket by finger
High performance ferrule Fiber core
Ceramic ferrule
Strict examination to ensure no any crack
Furrule concentric rate: ≤1.0
