What is Fiber Optic Drop Cable?

Fiber drop cable is the basic fiber optic cable that is used to connect the terminal of a distribution cable to a customer’s premises, supporting signal transmission from outdoor to indoor.

Fiber optic drop cables have the advantages of small outer diameter, light weight, low cost, and convenient construction, have been widely used in FTTH (fiber to the home) network cabling.

At present, there are two common types of drop cable structure on the market: flat butterfly and round.

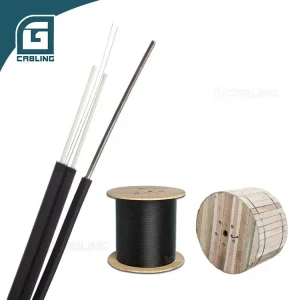

Fiber Drop Cable

Features of Fiber Drop Cable

1. Simple structure, light weight, good bending and high practicability;

2. Concave groove design, easy to strip and splice, simplify the installation and maintenance;

3. Strength members ensure a good performance of tension and crush resistance;

4. Low smoke, zero halogen outer sheath, anti-UV and flame-retardant.

Structures of Fiber Drop Cable

Optical Fiber

Optical fiber is the core component of fiber optic cables, responsible for the transmission of optical signals. According to the market and customer needs, G652D, G657A1, G657A2, is mainly required on the current market. If multi-mode is required, can also be customized.

Reinforcement

When using fibre drop cables for long-distance horizontal or vertical cabling, the tensile strength of the drop cable must be considered. At present, the reinforcement components on the market are mainly divided into two types: metal reinforcement and FRP (Fiber Reinforced Plastics).

Metal reinforcement: Strong tensile strength, slightly lower cost. But need to pay attention to the conductivity of lightning strikes on rainy days.

FRP: Low tension strength, slightly higher cost. Excellent lightning protection performance.

Self-supporting Member

Self-supporting figure 8 flat drop cable has an additional 1 self-supporting steel wire compared to ordinary flat drop cable, which has stronger tensile performance. It can be laid overhead outdoors and then enter to the indoor wiring.

Outer Jacket

Drop cables are mainly used from outdoors to indoors, where they are exposed to sunlight and rain. In addition, cables may pass through buildings and require good flame retardant performance. Therefore, the outer jacket of optical drop cable will be made of anti-UV and flame-retardant LSZH material.

Main Types of Drop Cable

Self-support Flat Drop Cable

  • It can be 1 core, 2 cores, 4 cores normally;
  • 1 self-supporting steel wire and 2 parallel strength members ensure a good performance of crush resistance to protect the fibers;
  • The strength member can be made with FRP or galvanized steel wire;
  • It is normally made basis on 80M span application.

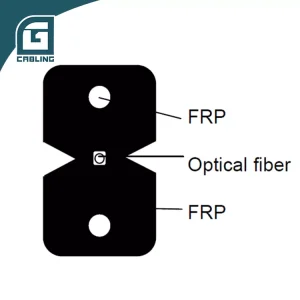

Self-support Flat Drop Cable

Application:

FTTH and indoor wiring

Pre-terminated in the factory

More suitable for optical fiber connection and fiber optic fast connectors

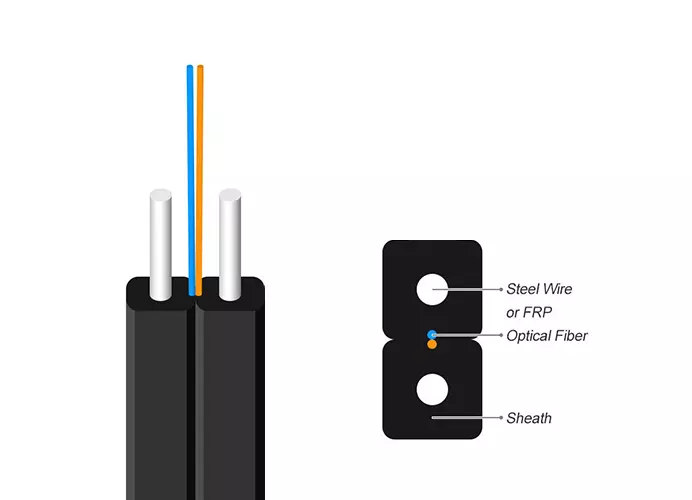

None Self-support Flat Drop Cable

  • It can be 1 core, 2 cores, 4 cores normally;
  • 2 parallel strength members ensure a good performance of crush resistance to protect the fibers;
  • The strength member can be made with FRP or galvanized steel wire;
  • It is normally made basis on 80M span application.
None Self-support Flat Drop Cable

Application:

FTTH and indoor wiring

Access network

For patch cords and pigtails, for communication equipment

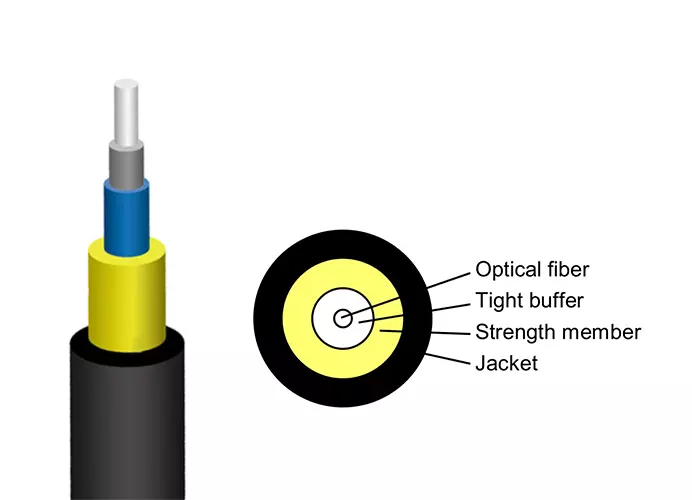

Round Drop Cable

  • It can be 1 core, 2 cores, 4 cores;
  • It’s structure: optical fiber, tight buffer, strength member (aramid), and jacket;
  • The span is 80m normally;
  • More popular in Euro market.
Round Drop Cable

Application:

FTTH (fibre to the home)

Telecommunication networks

CATV – Cable television

Wall outlets to Desk

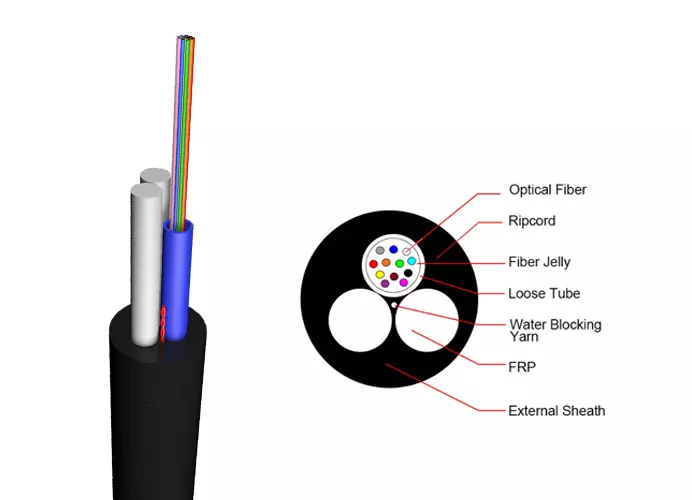

Mini ADSS Cable

  • It can be made from 4 to 144 fibers;
  • It is made of non-metallic materials, can work under high voltage environment;
  • It is high tensile strength and can withstand external forces caused by wind, ice, snow, etc.;
  • As its small size, light weight and cost-effective production, widely used as drop cable.
Mini ADSS Cable

Application:

For aerial network

For high electromagnetic interfering places

For laying in urban pipeline

For buildings to do vertical backbone applications of buildings

Gcabling Fiber Drop Cable

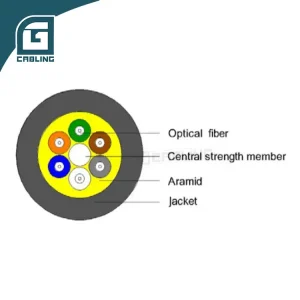

Featured Drop Cable

If you need fibre drop cables, please contact Gcabling. Here we list several featured fiber optic drop cables.

Customize Your Optical Drop Cable

If our standard drop cables cannot meet the demand, we can do OEM / ODM according to your specifications.
