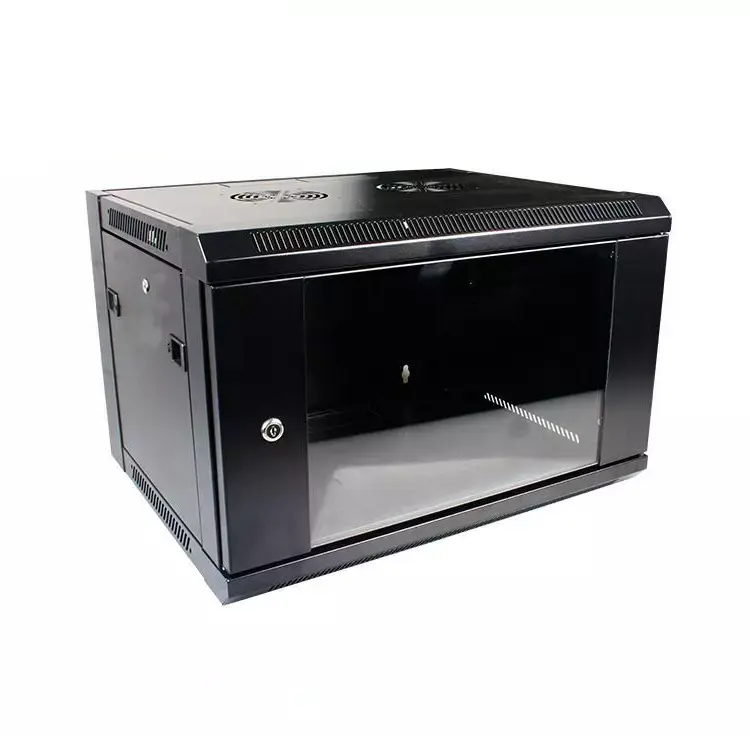

Network Wall Cabinet – Model SE

Part No.：423xx

Capacity: 6U, 9U, 12U, 15U, 18U, 22U or customized

Width: 570mm

Depth: 450mm, 600mm optional

Material: SPCC

Static loading: 100KGS

Features of Gcabling’s wall mount network cabinets

• door adopts a pluggable design，can be opened on the left or right，support a steering angle to 180 degree
• guide rails for installing equipment are marked with U numbers for easy positioning
• cable entries are supported from both the top and bottom
• top reserved installation holes can be used for fan installing
• DIY assembly can be completed in 5 minutes.

Network Server Rack – Model PE

Part No.：412xx

Capacity: 27U, 33U, 35U, 42U or customized

Width: 600mm, 800mm or customized

Depth: 600mm, 800mm, 1000mm or customized

Material: SPCC

Static loading: 1000KGS

Features of Gcabling’s network cabinets

• front and rear door are pluggable designed，expenditure according to application；left and right opening，supports a steering angle to 180 degrees
• the removable side panels are divided into two parts with locks separately for anti-theft and easy maintenance in the future
• packaging：cabinets could be shipped in disassembled packing，the reduced packaging volume after disassembly can decrease over 30%，saving transportation and storage costs

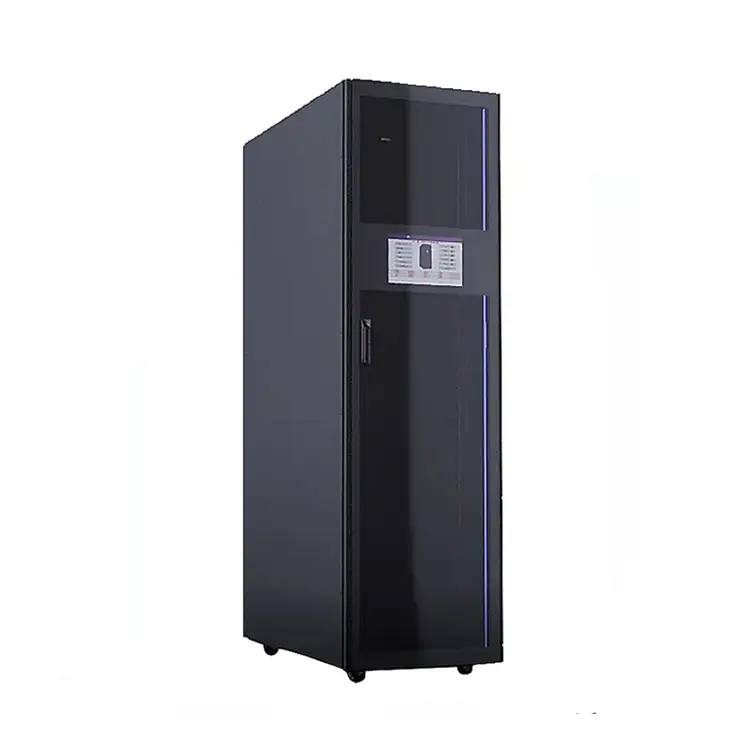

Smart Server Rack

Part No.：41D01

Capacity: 42U or customized

Width: 600mm or customized

Depth: 1200mm or customized

Material: SPCC

Static loading: 1500KGS

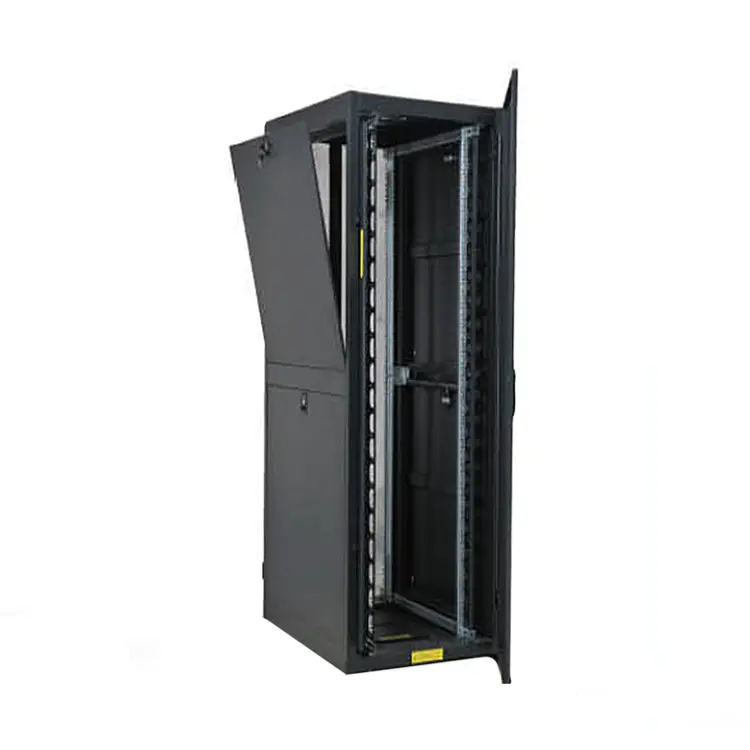

Floor Standing Server Cabinet – Model VE

Part No.：413xx

Capacity: 24U, 27U, 33U, 42U or customized

Width: 600mm, 800mm or customized

Depth: 600mm, 800mm, 1000mm or customized

Material: SPCC

Static loading: 1500KGS

Feature of Gcabling’s smart server rack cabinets

featuring “All-in-one” design，is a highly integrated，quick-to-deploy，plug and play，intelligently managed，scalable fully customizable，convenient and solution，that perfectly integrates UPS and power supply/distribution subsystem，cooling subsystem，intelligent management and security subsystem.
